Hose pumps VPH series
The VPH series of peristaltic pumps with shoe technology is our updated peristaltic pump designed for high pressure applications up to 15 bar, with 14 sizes available in flow rates up to 150 m3/h. This is a heavy-duty industrial pump series designed for round-the-clock operation. We have combined the best available materials with clever design solutions to maximise uptime and minimise maintenance.
This pump summarises what we want to achieve: the best pumping solutions for our customers. Our design increases the simplicity and reliability of the pump.
Flow Range:max. 150 m3/h
Viscosity:1.000.000 cP
Temperature:max. 90 °C
Pressure:max. 15 bar
Solids:up to 60 mm
Materials:cast iron
Dimensions:hose diameter: ¼'' ÷ 5''
Hose pumps N series
Peristaltic pumps of the N series (roller design) are self-priming peristaltic pumps with a seal-free design. The liquids are transported inside the hose and do not come into contact with any metal parts of the pump.
The pumps are characterised by extremely smooth pumping of the product, thus preventing the formation of emulsions or turbulence. All pumps can be supplied in monoblock versions connected to gearboxes, regulators, electric, diesel, pneumatic or hydraulic motors.
Flow Range:max. 60 m3/h
Viscosity:150.000 cps
Temperature:max. 100 °C
Pressure:max. 7 bar
Solids:max. permissible content - 60% up to 60 mm
Materials:aluminium

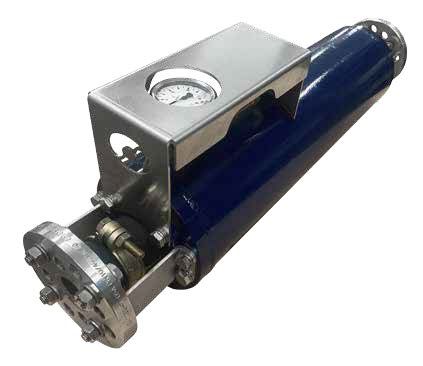

Valisi VPHP In-Line Pulsation Dampeners
Valis VPHP In-Line pulsation dampers reduce vibrations, pulsations and hydraulic shocks in the system, whilst increasing the life of the hose and preventing damage in pumps, valves, and process instrumentation.
Dimensions:DIN PN40 or ANSI 150# multi-diameter flange
Peristaltic pumps, or hose pumps, are a type of positive displacement pump. The main advantage of peristaltic pumps is that nothing but the tube/hose comes into contact with the liquid. Since only the inner opening of the hose is in contact with the liquid, there is no risk of contamination of the pump.
- DeliveryWe guarantee a prompt and reliable delivery of pumping equipment to any part of the country.
- InstallationWe guarantee a high quality installation work, which ensures optimal and safe operation of the pumping equipment.
- WarrantyWe provide an extended warranty period for all pumping equipment, which indicates its high quality and reliability.
Why us
Valisi peristaltic pumps combine the best materials with a simple design solution to extend the service life and reduce the time required for maintenance.
12 reasons to buy the peristaltic pumps from ASCO PUMPS
- 20 different sizes are available, covering flow rates from 0 to 150,000 litres per hour.
- Pumping delicate liquids with little wear and tear.
- Since only the inside of the hoses and bushings come into contact with aggressive and contaminated liquids, liquids can be pumped without the damage caused by other pumping technologies.
- Hoses are made of natural rubber NR, NBR, food grade NBR, EPDM, Hypalon, FKM, Viton
- Possibility of precise control over the volume of the supplied liquid - the device is capable of performing dosing operations of flowing substances.
- Possibility of passing solids in the pumped material, 20% of the hose identifier.
- Safe absence of liquid in the operating system - dry running is not critical.
- Seal-less design eliminates leaks, contamination and wear and tear problems associated with tightness.
- Water suction height up to 9.8 metres.
- Possibility of reverse operation of the device.
- Robust construction of ductile iron and steel construction provides the ability to create high pressure devices at the outlet - up to 15 bar.
- Low maintenance requirements for hose and boot.
Articles
The last news and articles

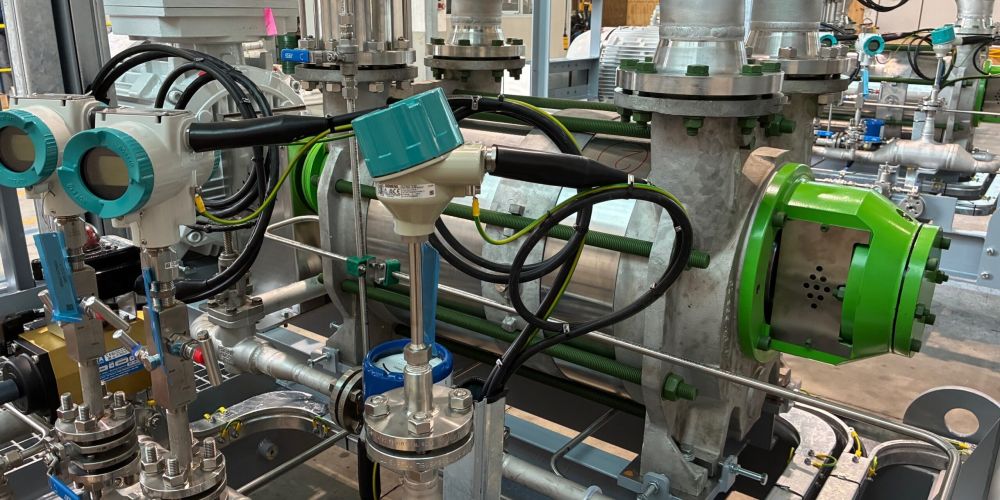

Carbon capture vacuum systems
More details

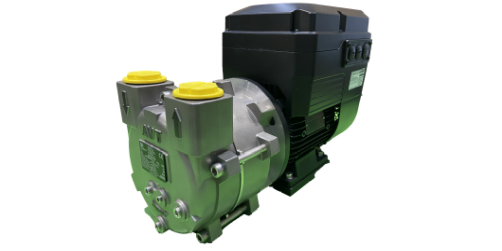

Monoblock liquid ring vacuum pumps driven by permanent magnet motors
More details

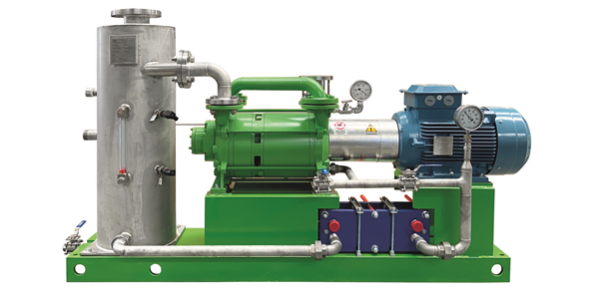

Aquapack systems with double stage pump
